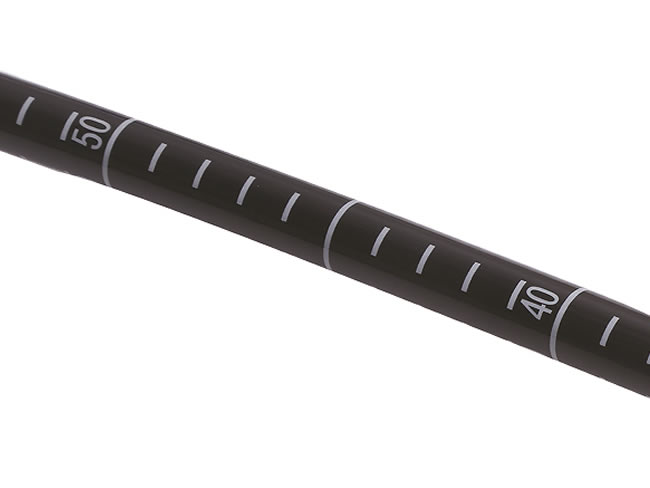

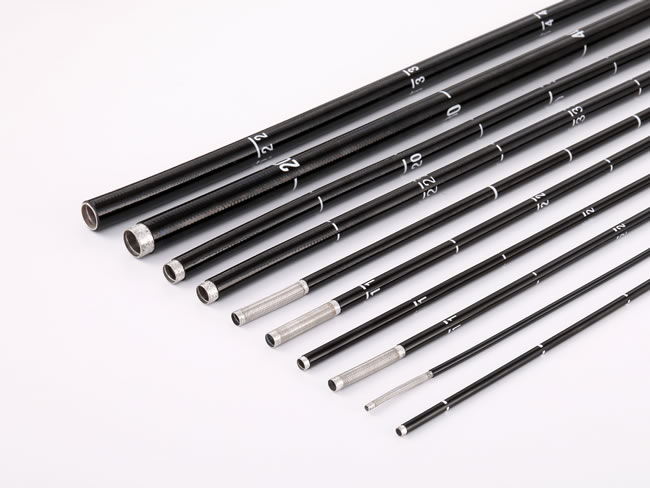

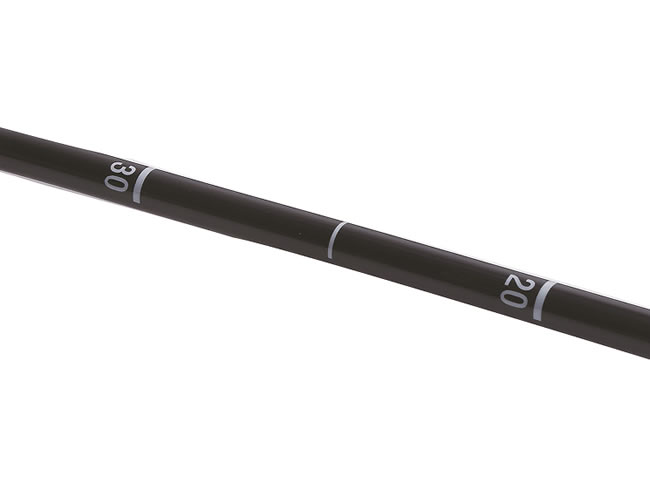

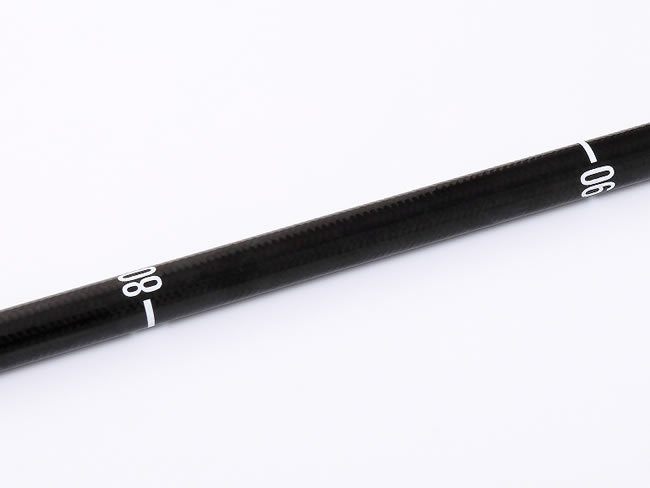

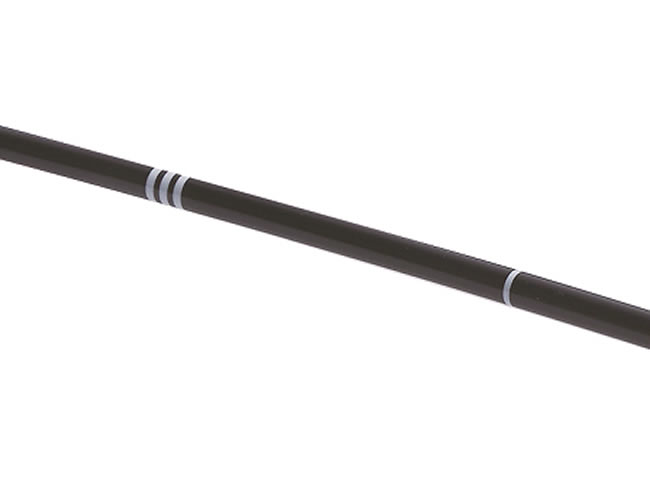

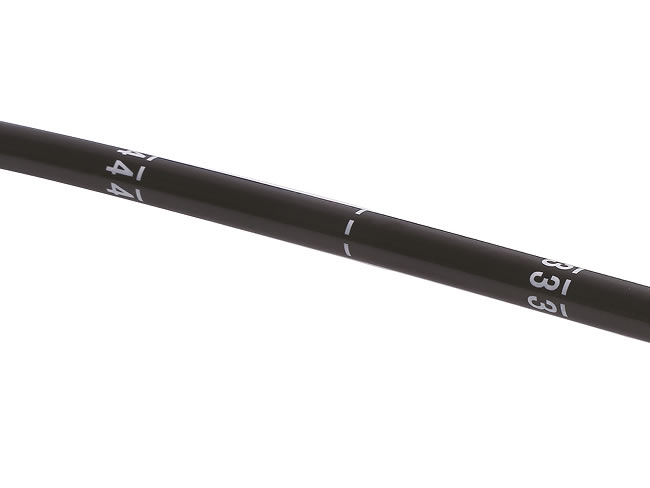

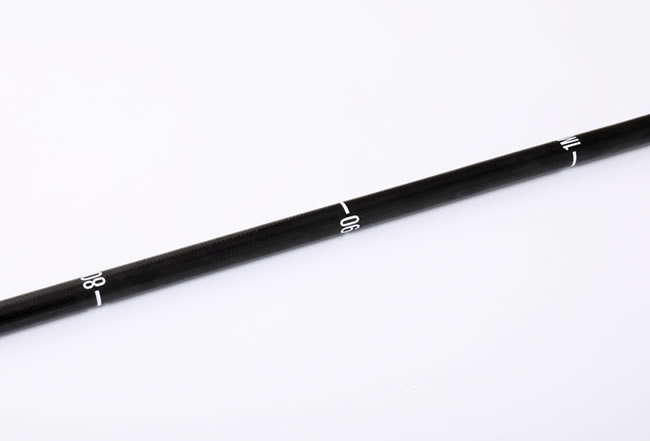

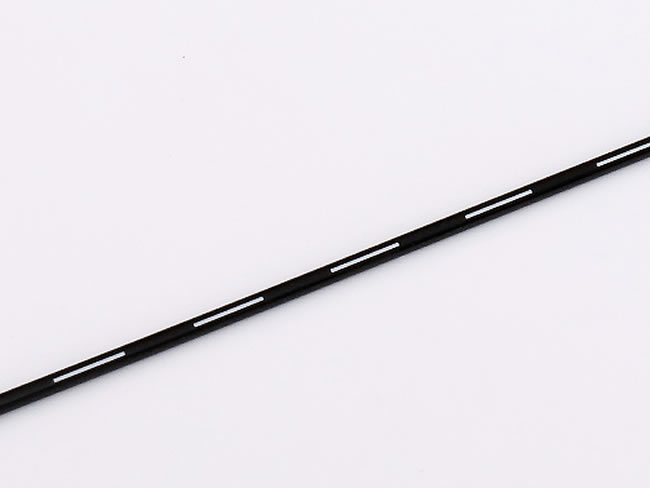

Insertion Tube for Colonoscope / Gastroscope / Slim Endoscope
Feedback Form

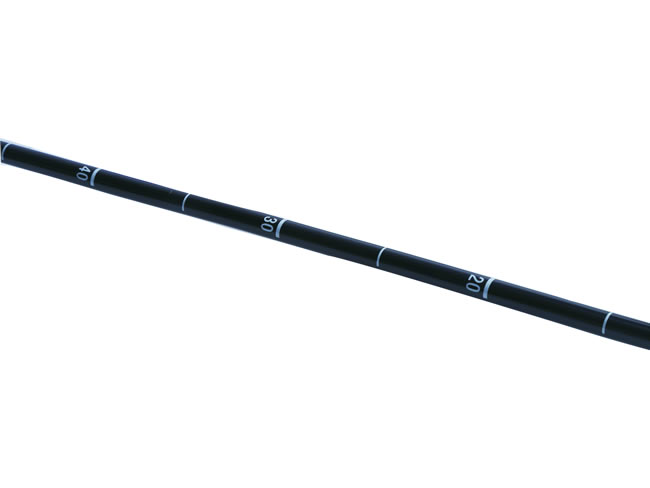

肠镜插入管

产品编号 适配型号 L (mm) ID (mm) OD (mm)
ITOC1280115 J178 　 1280 9.0 11.5
ITOC1620133 J358 　 1620 10.7 13.3
ITOC1660132 　 CF-100HI 1660 10.7 13.2
ITOC1631133 J 371 CF-20L 1631 10.5 13.3
ITOC1275133 J372 CF-100I, CF-200I 1275 10.7 13.3
ITOC1275138 J385 CF-1T20, CF-1T200I, CF-200Z, CF-1T100I 1275 11.2 13.8
ITOC1631124 J461 CF-P20L CF-P10L 1631 10 12.4
ITOC1285123 J462 CF-P20 1285 9.9 12.3
ITOC1622133 J524 CF-100L, CF-200L 1622 10.7 13.3
ITOC1216116 J541 　 1216 9.1 11.6
ITOC1621138 J636 CF-1T100L, CF-1T200L 1621 11.2 13.8
ITOC1266130 J810 CF-30I 1266 10.5 13.0
ITOC1613130 J814 CF-100TL 1613 10.5 13.0
ITOC1272130 J1001 CF- Q140I 1272 10.5 13.0
ITOC1627130 J1028 CF-140L, CF-VL, CF-230L, CF-Q240L 1627 10.5 13.0
ITOC1640113 J1065 PCF-140L 1640 9.0 11.25
ITOC1628138 J1130 CF-IT140L 1628 11.1 13.8
ITOC1640116 J1226-L PCF-160AL PCF-Q260AL 1640 9.1 11.6
ITOC1285116 J1226-I PCF-160AI 1285 9.1 11.6
ITOC1279121 J1041.1 CF-240I 1279 9.7 12.1
ITOC1281129 J1071 CF-40I, CF-140I, CF-Q240I, CF-230I, CF-Q140I, CF-30I 1281 10.5 12.9
ITOC1630122 J1042 CF-240L 1630 9.6 12.2
ITOC1640128 J1219 CF-Q240AL 1640 10.4 12.8
ITOC1640106 J-1303-5 PCF-P240AL 1640 8.3 10.6
ITOC1635124 J1137 CF-Q260DL 1635 10.1 12.4
ITOC1635125 J 1339 CF-240DL 1635 10.2 12.5
ITOC1210125 　 TJF-140R 1210 10.2 12.5
ITOC1230115 　 TJF-260V 1230 9.5 11.5
ITPC1657115 EC-3430F (PTX) 1657 9.5 11.5
ITPC1657129 EC-3801L EC-3831L (PTX) 1657 10.5 12.9
ITPC1657125 EC-3801L2 (PTX) 1657 10.2 12.5
ITPC1680128 EC-3830L (PTX) 1680 10.5 12.8
ITFC1650138 EC7-HL2 (Fujinon) 1650 11.2 13.8
ITFC1280129 EC250WM EC-250WM5, EC-201WM,
EC-200HR ( 富士插入管，带接头 ) 		1280 10.4 12.9
ITFC1460129 EC-250WI EC-250WI5, EC-200WM2T1S,
EC-200WRT1S, EC-201WI ( 富士插入管，带接头 ) 		1460 10.4 12.9
* 所有肠镜插入管均由双弹簧管制作 .

胃镜插入管

产品编号 适配型号 L (mm) ID (mm) OD (mm)
ITOG1044090 J78 　 1044 7.2 9.0
ITOG1000098 J146 GIF-XQ10 1000 8.0 9.8
ITOG1223105 J152 GIF-200Z,GIF-Q230,GIF-Q200 1223 8.5 10.5
ITOG0992080 J186.2 　 992 6.2 8.0
ITOG1025079 J 386 GIF-XP20 1025 6.1 7.9
ITOG1003100 J273.2 GIF-XQ20 1003 8.0 10.0
ITOG1004090 J274.2 GIF-P20 GIF-PQ20 1004 7.2 9.0
ITOG1000111 J293.3 GIF-Q20 GIF-Q10 1000 9.2 11.1
ITOG0992115 J303.3 　 992 9.5 11.5
ITOG1007096 J412 GIF-100 1007 7.6 9.6
ITOG0972113 J698 GIF-IT100 972 9.2 11.3
ITOG1215110 J788 JF-130 1215 8.9 11.0
ITOG1007098 J792.4 GIF-130, GIF-XQ30, GIF-Q240, GIF-XK200, GIF-XQ40, GIF-V2, GIF-E 1007 8.0 9.8
ITOG1217110 J945 GIF-1T240, JF-240, JF-230, JF-140R, JF-200 1217 9.0 11.0
ITOG1018096 J993 GIF-XQ140 1018 7.6 9.6
ITOG1005107 J996 GIF-Q140 1005 8.7 10.7
ITOG1040080 　 GIF-XP240 1040 6.2 8.0
ITOG0660080 J981 　 660 6.2 8.0
ITOG1030091 J1038.1 GIF-XQ240 GIF-SP240 GIF-XK240 1030 7.3 9.1
ITOG0980127 　 GIF-2T200 980 10.5 12.7
ITOG1300118 　 GIF-2T240 1300 9.9 11.8
ITOG1010115 J1052 GIF –1T140 1010 9.5 11.5
ITOG1022098 　 GIF –H 260 1022 8.0 9.8
ITOG1030100 　 GIF –H 180 1030 8.3 10.0
ITOG1022100 J1096 GIF-140 1022 8.0 10.0
ITOG1150085 　 GIF-P140 1150 7.0 8.5
ITOG1015086 　 GIF-P230 1015 6.8 8.6
ITOG1000094 J1105 GIF-XQ200, GIF-XQ230 1000 7.6 9.4
ITOG1027088 J1212 GIF-160 1027 7.0 8.8
ITOG1020098 J 1218 GIF-Q160 1020 8.0 9.8
ITOG1035094 　 GIF-Q260 1035 7.6 9.4
ITOG1150062 J 1270.2 GIF-XP160 1150 5.1 6.2
ITOG1020068 　 GIF-XP260 1020 5.7 6.8
ITOG1000053 　 GIF-N30 1000 4.2 5.3
ITPG0945053 FG-16X (PTX ) 945 4.2 5.3
ITPG1100079 FG-24X (PTX ) 1100 6.2 7.9
ITPG1100060 EG-1840 (PTX ) 1100 4.6 6.0
ITPG1065060 EG-1870K (PTX ) 1065 4.8 6.0
ITPG1060091 EG-2700 (PTX ) 1060 7.3 9.1
ITPG1042102 EG-2900 (PTX ) 1042 8.2 10.2
ITPG1042098 EG-2901 (PTX ) 1042 8.0 9.8
ITPG1100114 EG-3400 (PTX ) 1100 9.4 11.4
ITPG1300115 ED-3410 (PTX) 1300 9.5 11.5
ITFG1095094 EG-250WR5 EG-250HR, EG-250HR2 ( 富士插入管，带接头 )
1095 7.6 9.4
ITFG1070098 EG-200HR EG-200FPS, EG-201FP ( 富士插入管，带接头 )
1070 8.0 9.8

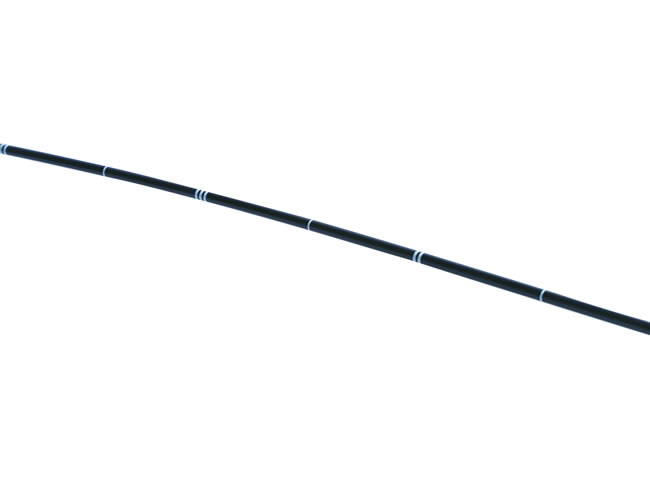

细镜插入管

产品编号 适配型号 L (mm) ID (mm) OD (mm)
ITOS531530 BF-P20D 531 4.2 5.3
ITOS587530 BF-160 587 4.2 5.3
ITOS587630 BF-1T160 587 5.3 6.3
ITOS580600 BF-1T260 580 5.1 6.0
ITOS550570 BF-240 550 4.8 5.7
ITOS542526 BF-20/30 542 4.3 5.26
ITOS535520 BF-P10 / P20 / P30 / P40 535 4.3 5.2
ITOS610500 BF-P60 610 4.1 5.0
ITOS535620 BF-IT10 / IT20 / IT30 / IT40 535 5.2 6.2
ITOS550530 BF-P240 550 4.4 5.3
ITOS550600 BF-1T240 550 5.1 6.0
ITOS600600 BF-TE2 600 5.0 6.0
ITOS720370 BF-3C20 720 3.0 3.7
ITOS550360 BF-3C30 550 2.9 3.6
ITOS592396 BF-3C160 592 3.2 3.96
ITOS600650 BF-XT20 600 5.3 6.5
ITOS527600 BF-200 527 4.9 6.0
ITOS600420 LF-GP 600 3.2 4.2
ITOS620320 LF-DP 620 2.3 3.2
ITOS700510 LF-TP 700 4.3 5.1
ITOS700420 LF-2 700 3.0 4.2
ITOS350510 CHF-P10 350 4.3 5.1
ITOS362520 CHP-20 362 4.2 5.2
ITOS355550 CYF-5 355 4.6 5.5
ITOS400550 CYF-240 400 4.6 5.5
ITOS350550 CYF-V 350 4.6 5.5
ITOS202037 CHF-B160 2020 2.9 3.7
ITOS268370 ENF-P3 268 3.0 3.7
ITOS325370 ENF-P4 / ENF-GP 325 3.0 3.7
ITOS315360 NASO 315 3.0 3.6
ITPS600510 EB-1530T3 (PTX) 600 4.2 5.1
ITPS590630 EB-1970K (PTX) 590 5.35 6.3
ITPS700370 FB-10X (PTX) 700 3.0 3.7
ITPS600530 FB-15X (PTX) 600 4.2 5.3
ITPS400500 FCY-15P2 (PTX) 400 4.1 5.0
ITPS625370 FI-10P (PTX) 625 2.9 3.7
ITPS630435 FI-13P (PTX) 630 3.45 4.35
ITPS650500 FB-15P (PTX) 650 4.1 5.0
ITPS610620 FB-18V (PTX) 610 5.1 6.2
ITPS600610 FB-18P (PTX) 600 5.3 6.1
ITPS600532 FI-16BS (PTX) 600 4.4 5.32
ITPS350250 FNL-7RP3 (PTX) 350 1.8 2.5
ITPS330340 FNL-10RP3 (PTX) 330 2.7 3.4
ITFS440370 NAP-LS (Fujinon) 440 3.0 3.7
